Create an Azure Maps Account

So in my quest to provision and play with IoT devices I came across a little demo that could utilise location information and for that we would require access to a Geospatial API.

I thought I would put this simple step up as a blog as I didn’t realise at the time that Microsoft Azure actually offers just the thing, with Azure Maps.

You can get started with a free account here: Azure Maps – Geospatial Services APIs | Microsoft Azure

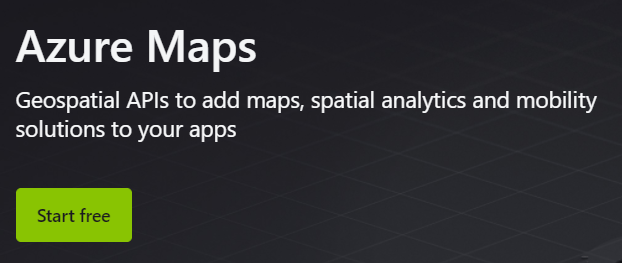

If we click on ‘Start Free’, we get taken to an Azure Market Place app that we can install:

We click ‘Get it Now’ and list our account….

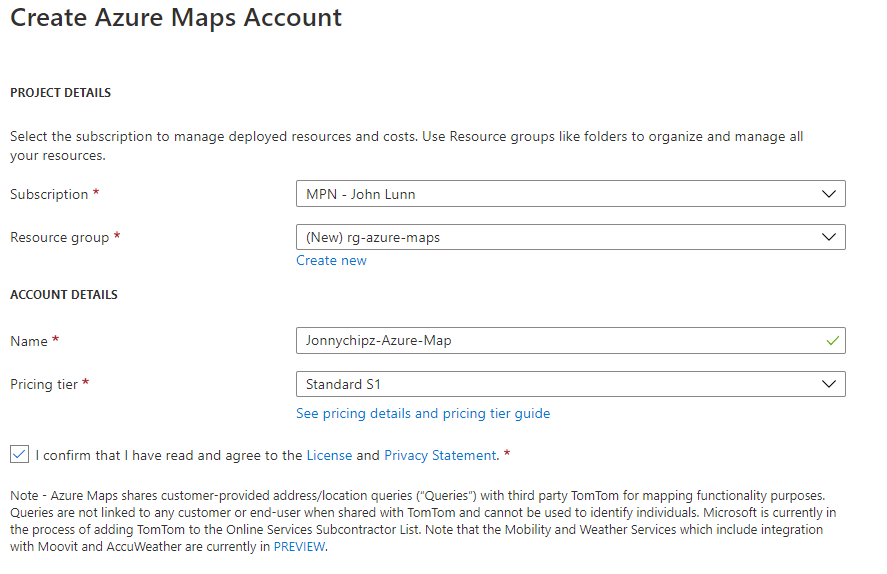

From here we can sign up and create our resource in our Azure Subscription:

More information can be found on the pricing structure here: Choose the right pricing tier for Microsoft Azure Maps | Microsoft Docs

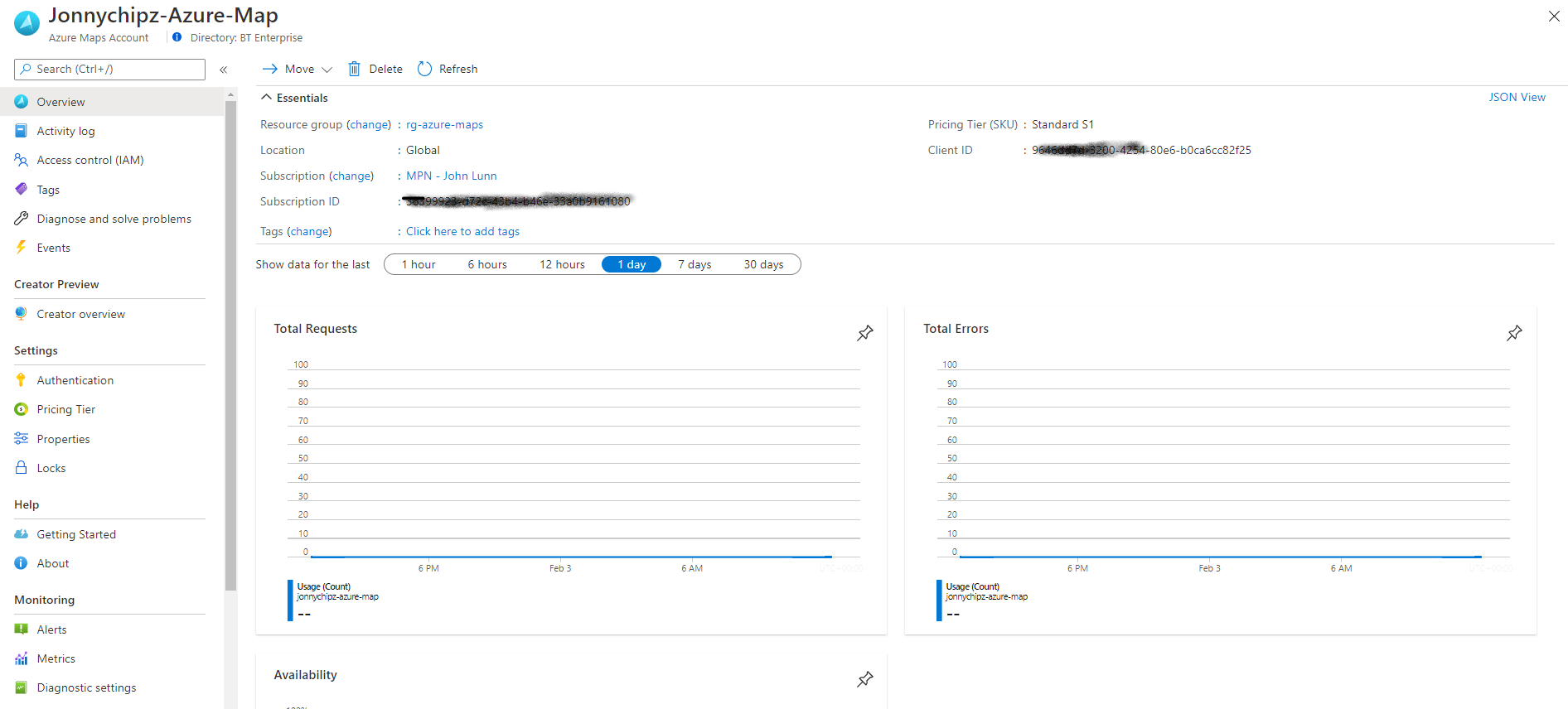

Here we have our newly created Azure Maps instance:

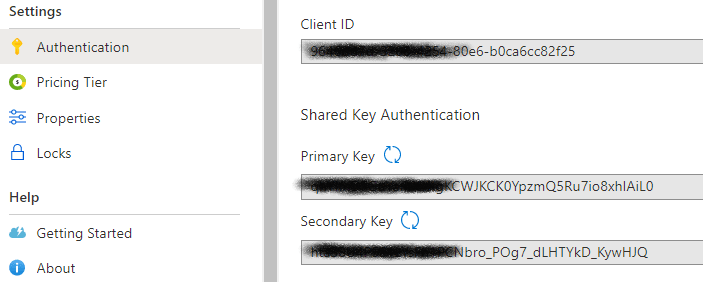

Clicking on our Authentication tab we can select and copy our Primary Key:

To test this works we can then take this sample HTML and add our Azure Maps Primary key where it says: <your Azure Maps key>

<!DOCTYPE html>

    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no">

    <!-- Add references to the Azure Maps Map control JavaScript and CSS files. -->
    <link rel="stylesheet" href="" type="text/css">
    <script src=""></script>

    <!-- Add a reference to the Azure Maps Services Module JavaScript file. -->
    <script src=""></script>

        function GetMap() {
            //Instantiate a map object
            var map = new atlas.Map("myMap", {
                //Add your Azure Maps subscription key to the map SDK. Get an Azure Maps key at
                authOptions: {
                    authType: 'subscriptionKey',
                    subscriptionKey: '<your Azure Maps key>'
        body {
            width: 100%;
            height: 100%;
            padding: 0;
            margin: 0;

        #myMap {
            width: 100%;
            height: 100%;

<body onload="GetMap()">
    <div id="myMap"></div>

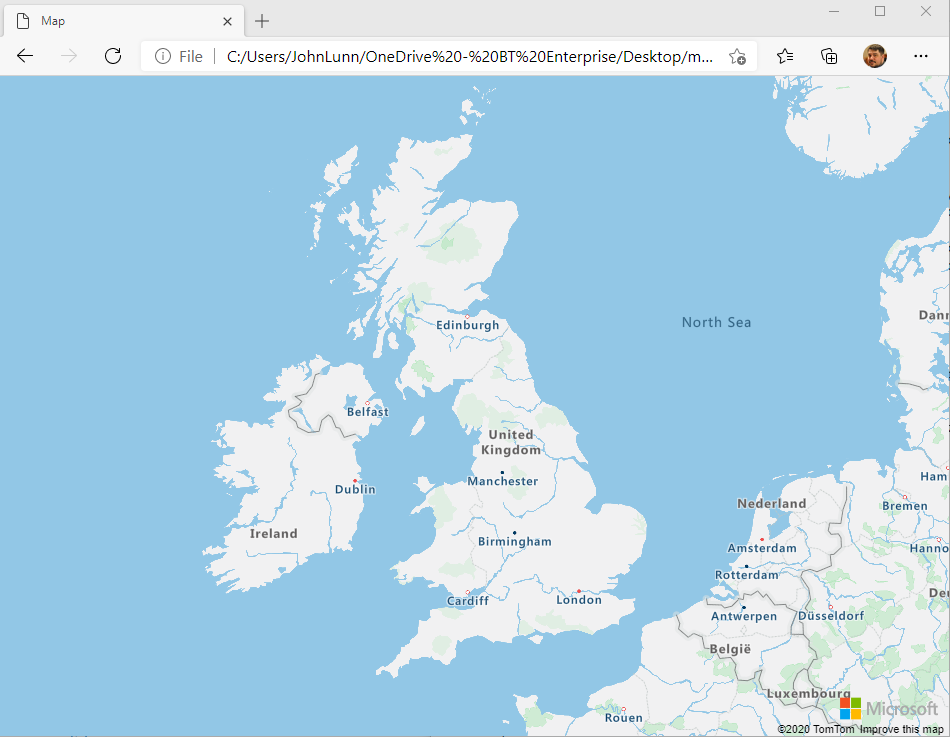

Then we can run this HTML in a browse and see that it works!!

Here we go, our very own Azure Map instance running in Azure that we can utilise for our IoT Projects!!!
