In keeping with the Azure Serverless theme that I am on at the moment, I took the time today to explore the concept of Durable Functions.

So What is a Durable Function?

In summary an Azure Durable function is an extension to Azure Functions that enables Long lasting stateful operations in Azure. Typically, Azure Functions operate in a stateless environment, durable functions can maintain state in between calls.

There are 3 different Durable Function types:

  • Client – Run in response to triggers from multiple sources.
  • Orchestrator – Describes how and in what order actions are performed.
  • Activity – Are the basic task element of Durable Functions.

Application Patterns

Durable Functions can be used in various application types:

  • Function chaining
Function chaining pattern
  • Fan out / Fan in
Fan out/fan in pattern
  • Async HTTP APIs
Async HTTP API pattern
  • Monitor
Monitor pattern
  • Human Interaction
Human interaction pattern

Creating a workflow with a Durable Function

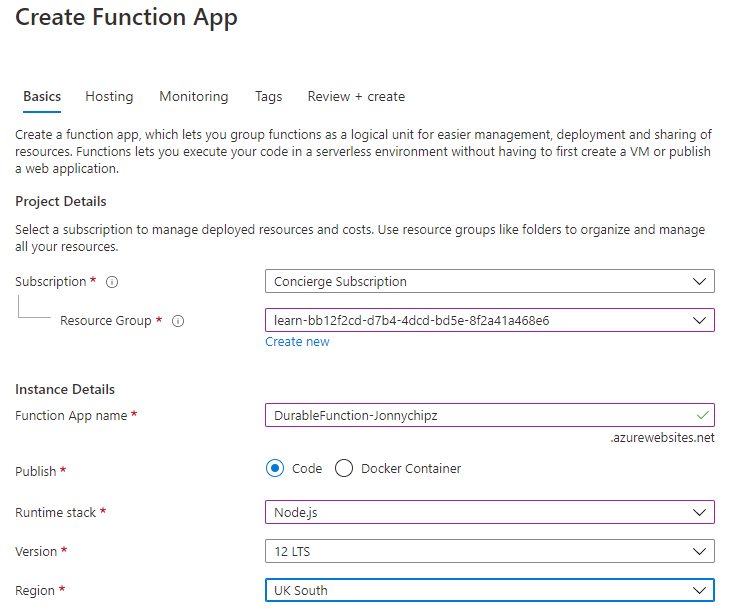

First we create our Function App:

Next we need to install the Durable-Funcitons npm package.

From the Azure Portal, we select our Funcitons App, and select App Service Editor under the Development Tools menu#:

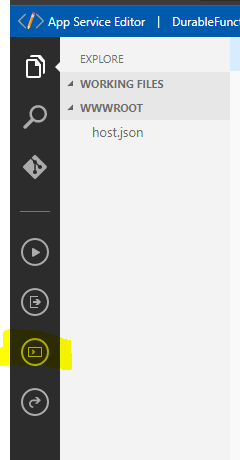

Click Go and wait for the Editor to open. Browse to wwwroot and click open Console:

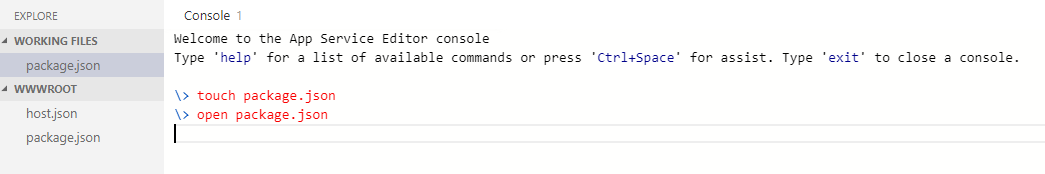

Enter the following commands to create and open a json file:

touch package.json
open package.json

Then add the following code:

"name": "DurableFunction-Jonnychipz",
"version": "1.0.0"

Save and Quit the document using CTRL+s and CTRL-q

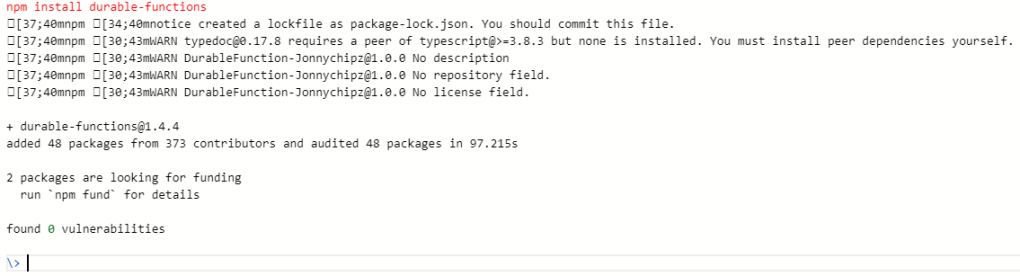

At the console window enter the following:

npm install durable-functions

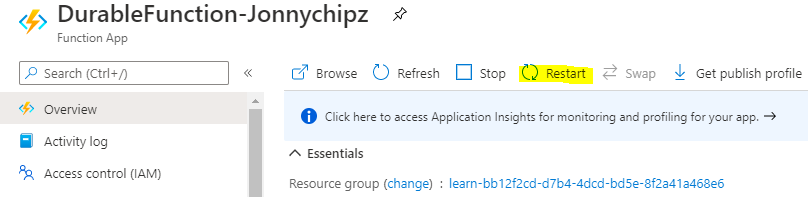

Restart the App Service:

Creating the Client Function

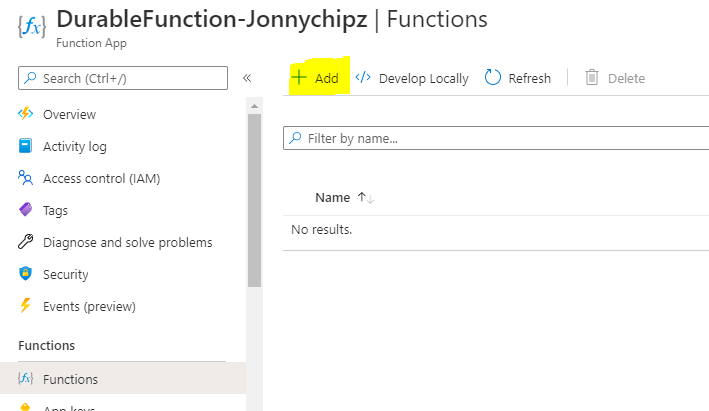

Add a New Function:

Select the Durable Functions HTTP Starter:

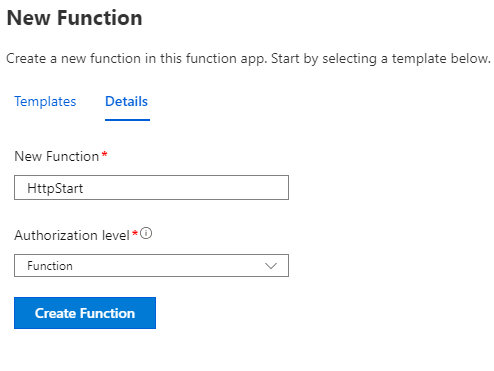

Name the function and select Function as the Authorisation level:

Our index.js file looks like this:

const df = require("durable-functions");

module.exports = async function (context, req) {
const client = df.getClient(context);
const instanceId = await client.startNew(req.params.functionName, undefined, req.body);

context.log(`Started orchestration with ID = '${instanceId}'.`);

return client.createCheckStatusResponse(context.bindingData.req, instanceId);

And our bindings file function.json looks like this:

"bindings": [
"authLevel": "function",
"name": "req",
"type": "httpTrigger",
"direction": "in",
"route": "orchestrators/{functionName}",
"methods": [
"name": "$return",
"type": "http",
"direction": "out"
"name": "starter",
"type": "orchestrationClient",
"direction": "in"

Creating the Orchestrator Function

Same process as before, we will click Add new function, select the Orchestrator Template name and check our standard template code:

We will user the following code for our index.js file:

const df = require("durable-functions");
module.exports = df.orchestrator(function* (context) {
const outputs = [];
/* * We will call the approval activity with a reject and an approved to simulate both */ outputs.push(yield context.df.callActivity("Approval", "Approved")); outputs.push(yield context.df.callActivity("Approval", "Rejected")); return outputs;

Creating the Activity Function

Add new function, use the Durable Functions Activity template:

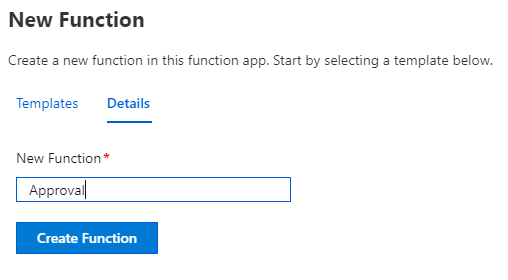

We will call the function Approval:

We will use the following code for our index.js file:

module.exports = async function (context) {
return Your project design proposal has been - ${}!;

Checking the Durable Functions Workflow has started

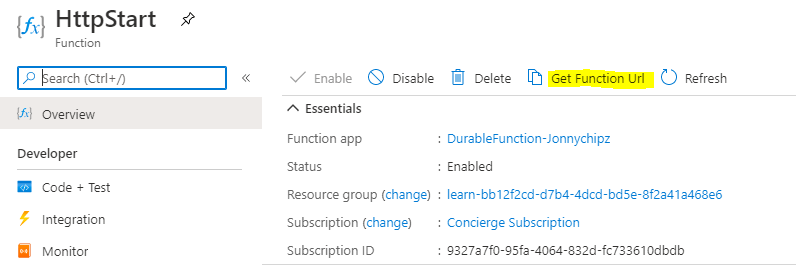

Select the Function ‘HttpStart’ and get the function URL:

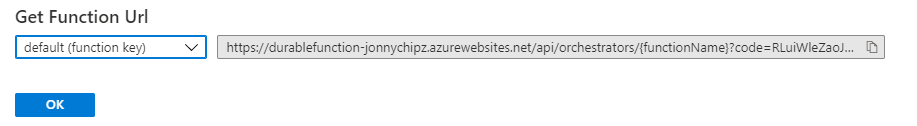

Copy the URL and paste it into a browser:

Replace ‘FunctionName’ with ‘OrchFunction’:

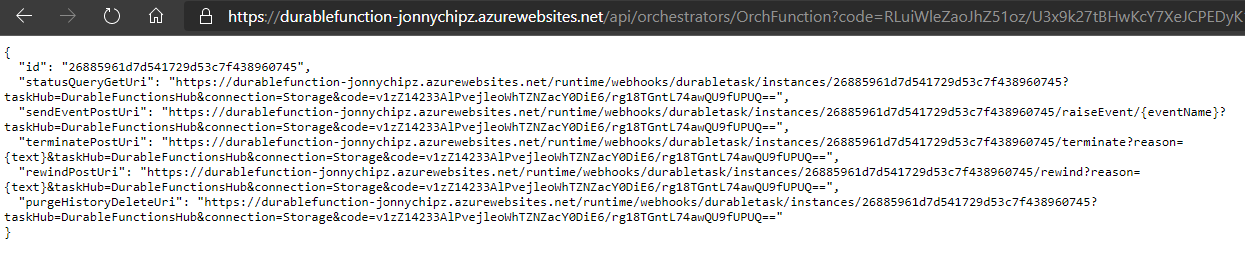

The return should be a set of URI endpoints:

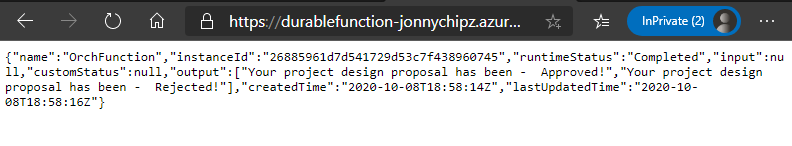

If we now browse to the StatusQueryGetURI we should receive a response as follows:

There we have it, a durable function running through the workflow of an approval process.

We can extend the Durable function further by adding a timer etc. for long running task.
